Widely Inducting Range Infrared Motion Sensor
  • Widely Inducting Range Infrared Motion SensorWidely Inducting Range Infrared Motion Sensor

Widely Inducting Range Infrared Motion Sensor

You can rest assured to buyWidely Inducting Range Infrared Motion Sensor from our factory and we will offer you the best after-sale service and timely delivery.

Model:PD-PIR113A

Send Inquiry

Product Details

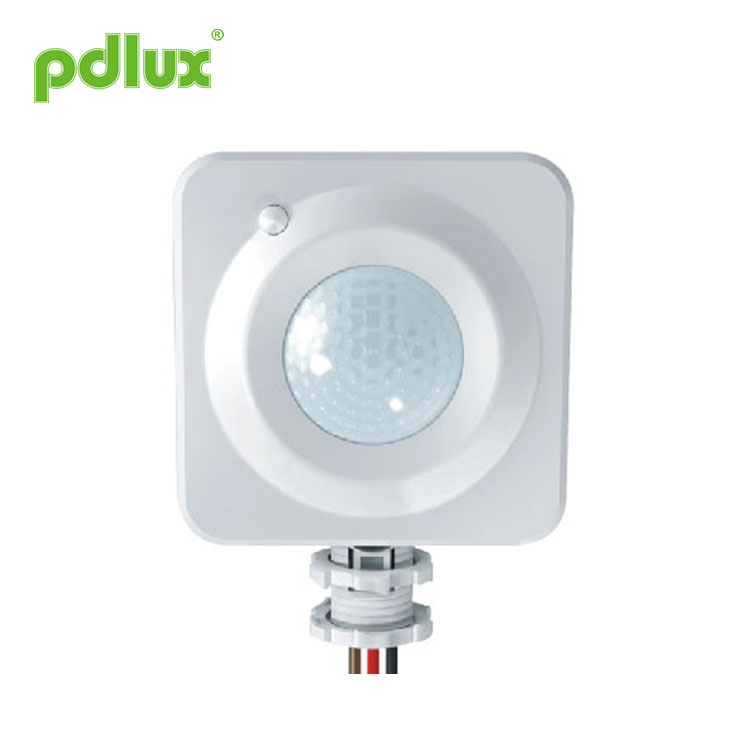

Infrared Sensor PD-PIR113A instruction

PRODUCT INFORMATION
This Widely Inducting Range Infrared Motion Sensor is a brand new digital energy-saving lighting switch, it adopts high sensitivity detector, MCU control, SMT; It gathers automatic, convenient, safety,energy saving ,anti-disturbance and practical functions ; The wide detection range is made up of the up and down, left and right detection field; It utilizes the infrared energy from
Human Body as the control-signal source, When one enters the detection field, it will start the controlled load; It can identify day and night automatically; Its installation is convenient and its detection range is wide; It has the functions of the power indication and the detection indication.

SPECIFICATIONS
Power source: 85-265V/AC
Power frequency: 50/60Hz
Light-control: <50LUX (it can be customized to your needs)
Time setting: (Delay time can be set by the key or remoter)
3min,6min,9min,12min,15min,18min, 21minm,24min,27,min,30min
Rated load: 2000W Max.tungsten (265V/AC)
800W Max.fluorescent (265V/AC )
800W Max.tungsten (85V/AC)
200W Max.fluorescent (85V/AC )
Detection range: 15m Max(wall installtion)
13m Max.(ceiling installtion)(24°C~26°C)
Detection angle: 360° / 120 °
Working temperature: -10~40°C
Working humidity: <93%RH
Installation height: 2-12m(ceiling installtion),2-3m(wall installtion)
Detection motion speed: 0.6~1.5m/s


SENSOR INFORMATION



FUNCTION DESCRIPTION

Time Setting:

Press the button till the LED indicator flickers once and then enter setting mode(Before setting, the indicator stays active. When setting, the indicator stays inactive. )In time setting mode, it will add 3 mins each time you press the button and at most 30 mins, that is at the 11th time, it returns to 3 mins. The LED indicator flickers once you press the button and 4 secs after setting finished, LED indicator flickers 5 times and then the system saves the information.



Test mode:

Press the button the LED flash one time, till the LED flash twice ,then loosen the button .4secs later,the LED flash for 5 times indicating the system is in test model. In this model ,regardless of day or night, when it receives signal ,the lamp will light on for 10secs.10 mins later ,it will quite this mode and into automatic reaction model.

INSTALLATION INSTRUCTION
(1)Before installing switch off power.
(2)Take off the bottom-stand.
(3)The bottom-stand is fixed on the selected position with inflated screw.
(4)Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.
(5)The sensor aimed at the lock of the bottom-stand and push.

Wall Installtion
(Installation method is similar to ceiling installation)



FOR OCCASIONS
The control switching devices, installed in the nonmetallic objects.
Can be widely used in home \ market \ office building \ factory \ hotel \ institution etc.

This product can be installed at the height up to 10M,suitable to be installed in the large warehouse.



Solutions of prevent the power network pulse interference the products:
Due to the difference of regional interference power network, the pulse of interference is uncertain,so the user are not suggested to adjust the sensitive to the maxium when using.
Suggestion:Please install and adjust the sensitive in the appropriate distance using,do not set the maxium sensitivity to prevent misoperation.
