Model:PD-PIR02
Send Inquiry
Product Details

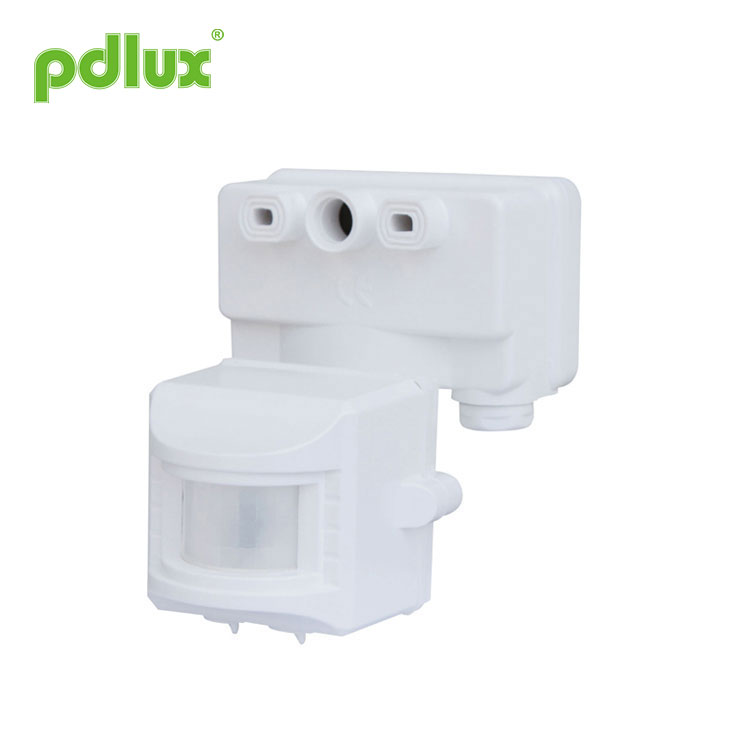

Small Infrared Human Body Motion Sensor Switch
Summary
The product is an energy-saving automatic switch, it adopts integrated circuit and infrared energy detector. It can be on when someone comes and off when leaves.Its performance is stable. It can identify day and night automatically. The light can turn on when someone enters detection field and trigger it, it can turn off automatically when leaves detection field .
Specifications
Sensor information
Function
Can identify day and night automatically, the ambient-light can be selected, so it works at night automatically and stop in the daytime.
Time setting can be adjusted vary to the place.
It mainly be used fitting with halogen lamp, but it also can be used alone.
Some problem and solved way
1.The load do not work:
a: Please check if the connection-wiring of power and load is correct;
b: Please check if the load is good ;
c: Please check if the working light set correspond to light-control.
2.The sensitivity is poor:
a: Please check if there has hinder in front of the detection window to effect to receive the signal;
b: Please check if the ambient temperature is too high;
c: Please check if the induction signal source is in the detection fields;
d: Please check if the installation height corresponds to the height showed in the instruction; e: Please check if the moving orientation is correct.
3.The sensor can not shut off the load automatically:
a: Please check if there is continual signal in the detection field;
b: Please check if the time setting is the longest;
c: Please check if the power correspond to the instruction;
d: Please check if the temperature near the sensor change obviously, such as air condition or central heating etc.
●Please confirm with prefessional installation.
●Please cut off power supply before installation and removal operations.
●Make sure that you have cut off the power for safety purposes.
●Improper operation caused losses, the manufacturer does not undertake any responsibility.
Solutions of prevent the power network pulse interference the products:
Due to the difference of regional interference power network, the pulse of interference is uncertain,so the user are not suggested to adjust the sensitive to the maxium when using. Suggestion:Please install and adjust the sensitive in the appropriate distance using,do not set the maxium sensitivity to prevent misoperation.
We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
Infrared Sensor PD-PIR02 instruction
Summary
The product is an energy-saving automatic switch, it adopts integrated circuit and infrared energy detector. It can be on when someone comes and off when leaves.Its performance is stable. It can identify day and night automatically. The light can turn on when someone enters detection field and trigger it, it can turn off automatically when leaves detection field .
Specifications
|
Power source: 100-130V/AC 220-240V/AC Power frequency: 50/60Hz Rated load: 800W Max.tungsten(100-130V/AC) 200W Max.fluorescent(100-130V/AC) 1200W Max.tungsten(220-240V/AC) 300W Max.fluorescent(220-240V/AC) |
Detection range:12m (22°C) Detection angle:120° Time setting: min:5sec max:10min±2min (adjustable) Light-control: <10~2000LUX (adjustable) Working temperature: -10°C~+40°C Working humidity: <93%RH Installation height: 2~4.5m |
Sensor information
Function
Can identify day and night automatically, the ambient-light can be selected, so it works at night automatically and stop in the daytime.
Time setting can be adjusted vary to the place.
It mainly be used fitting with halogen lamp, but it also can be used alone.
|
Installation I .when installing connect line according to the right fig. N – blue L – brown Red ( be from infrared sensor) connect blue and brown with power connect blue and red with load
Ⅱ . Detailed installation: |
 |
|
Test 1.After installation, please turn anti-clockwise the time knob(TIME) to the minimum and turn anti-clockwise the light-control knob(DAYLIGHT) to the end before you switch on the power. 2.switch on the power, the light can be on after 30sec. After it turns off, make it to sense after 5~10 sec. 3.If all are under good condition, with time adjustment knob the light period can be adjusted according to your desire, with light-control knob ambient-light can be adjusted . |
 |
Note
Avoid installing it where there are sunshine or air current and temperature alter obviously. Avoid touching the lens device with sharp things or coarse pollutant.Some problem and solved way
1.The load do not work:
a: Please check if the connection-wiring of power and load is correct;
b: Please check if the load is good ;
c: Please check if the working light set correspond to light-control.
2.The sensitivity is poor:
a: Please check if there has hinder in front of the detection window to effect to receive the signal;
b: Please check if the ambient temperature is too high;
c: Please check if the induction signal source is in the detection fields;
d: Please check if the installation height corresponds to the height showed in the instruction; e: Please check if the moving orientation is correct.
3.The sensor can not shut off the load automatically:
a: Please check if there is continual signal in the detection field;
b: Please check if the time setting is the longest;
c: Please check if the power correspond to the instruction;
d: Please check if the temperature near the sensor change obviously, such as air condition or central heating etc.
●Please confirm with prefessional installation.
●Please cut off power supply before installation and removal operations.
●Make sure that you have cut off the power for safety purposes.
●Improper operation caused losses, the manufacturer does not undertake any responsibility.
Solutions of prevent the power network pulse interference the products:
Due to the difference of regional interference power network, the pulse of interference is uncertain,so the user are not suggested to adjust the sensitive to the maxium when using. Suggestion:Please install and adjust the sensitive in the appropriate distance using,do not set the maxium sensitivity to prevent misoperation.
We are committed to promoting the product quality and reliability, however, all the electronic components have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
