Saving Energy Automatic Switch

Welcome to buy Saving Energy Automatic Switch from us. Every request from customers is being replied within 24 hours.

Model:PD-PIR131

Send Inquiry

Product Details

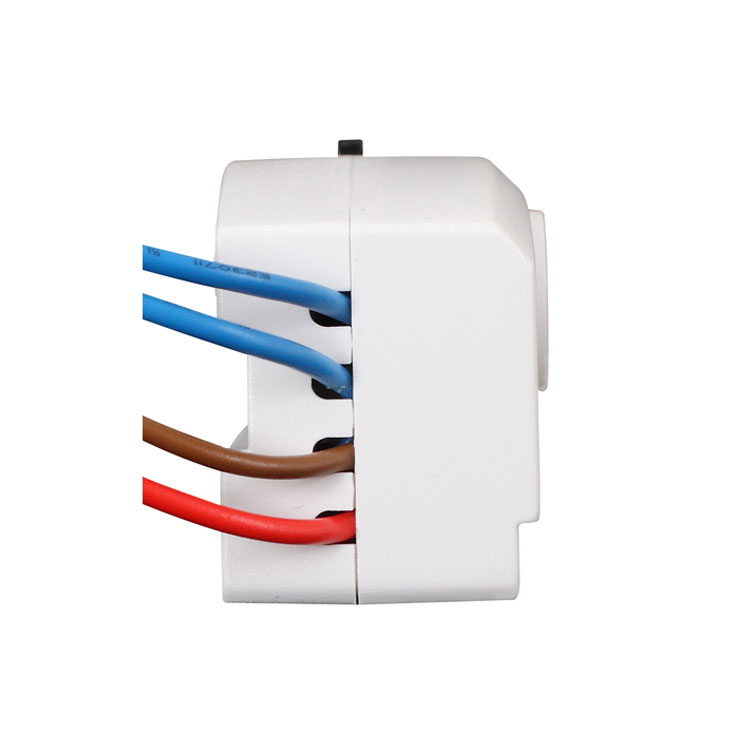

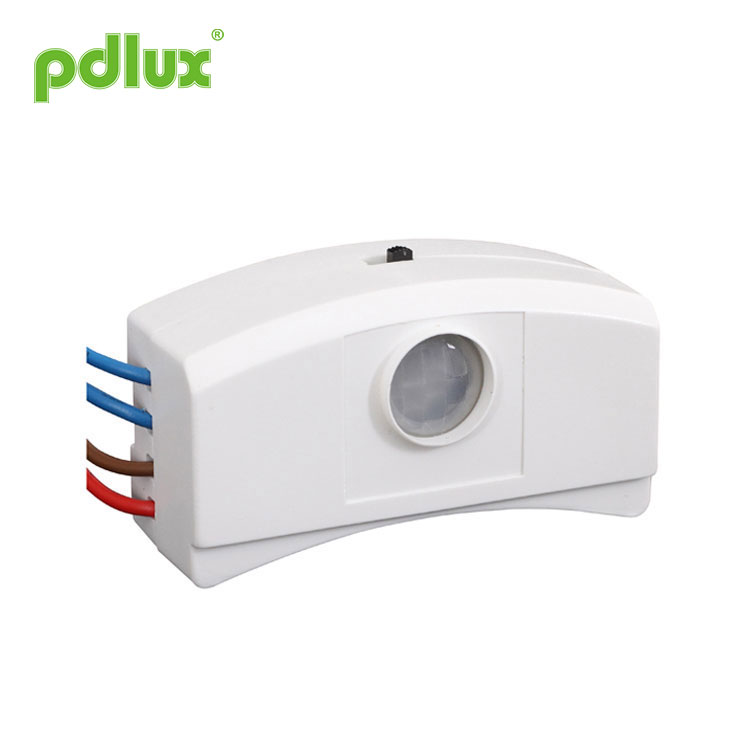

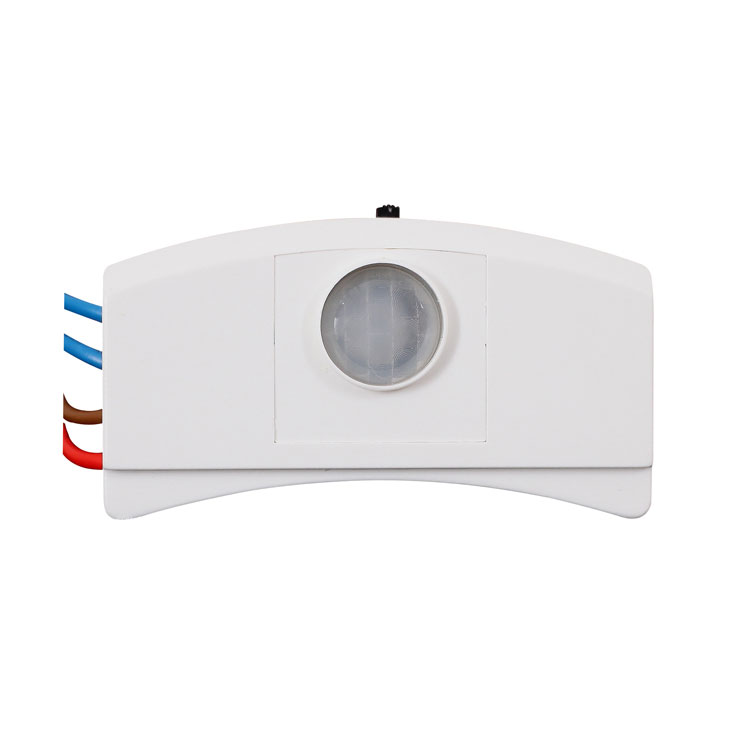

Infrared Sensor PD-PIR131 instruction

Summary:
The product is a saving energy automatic switch which can turn on lamp when one comes and turn off it after leaves automatically. It adopts high sensitivity detector, integrated circuit and SMD technology ; its performance is stable and reliable; when one enters detecting field and move, it can start the controlled load at once to turn on the lamp; after leaves the field, the lamp will go out automatically.

Specifications:
Power supply:100-130V/AC
220-240V/AC
Power frequency:50~60Hz
Rated load:100W
Time delay:9sec~60sec
Sense distance:7m(≤22℃)
Sense angle:70º~90º

Ambient light:<30LUX
Working temperature: -10~+40℃
Power consumption:0.45W(static 0.1W)

Sense motion speed:0.6~1.5m/s

Working humidity:<93%RH
Installing height: 1.2 m ~1.8 m

Senser Information

Test
connection line figure according to the connection figure ,switch on power;
after 1.5min the sensor enters the working state and the lamp goes out;
slide switch to “1”, move in the sense range, the lamp should turn on at once, under the condition that there is no continual sense, the lamp should go out after 9~15sec;
slide switch to “2”, if test it in the ambient light beyond 30lux, the sensor should not work, with an opaque (towel, etc) cover the sense window, the load should work, under the condition that there is no continual sense, the lamp should go out after 45~60sec.

Attentions
In front of detection window there should be no obstruction or moving object to affect its detection;
Avoiding installing it in the zones temperature change obviously for example: air conditioning、air heating.

Troublesome
①The load doesn’t work
a check if the connection of the load and power is correct;
b check if the load is good;
c check if the working light you set corresponds to ambient light.

②The sensitivity is poor
a Please check if in front of the detection window there is block effecting sensor to receive signals;
b Please check if the ambient temperature is too high;
c Please check if the signals source is in the detection field;
d Please check the installation height.

③ The sensor can’t shut off the load automatically
a Check if there are continual signals in the detection fields;
b If the power corresponds to the instruction;
c If the air temperature near the sensor change obviously, for example air condition or central heating etc.
