Mini Shell IR Sensor IP44

As the professional manufacturer, we would like to provide you Mini Shell IR Sensor IP44. And we will offer you the best after-sale service and timely delivery.

The wide detection field is made up of up and down, left and right service field. It works by receiving human motion infrared rays. When one enters the detection fields, it can start the load at once and identify day and night automatically;It can be used with various types of lamps and lanterns .

Characters

It can identify day and night automatically. And the working light can be chosen freely and make it work at night and not work in the day time.

Illuminated time can be adjusted according to the customer’s desire.

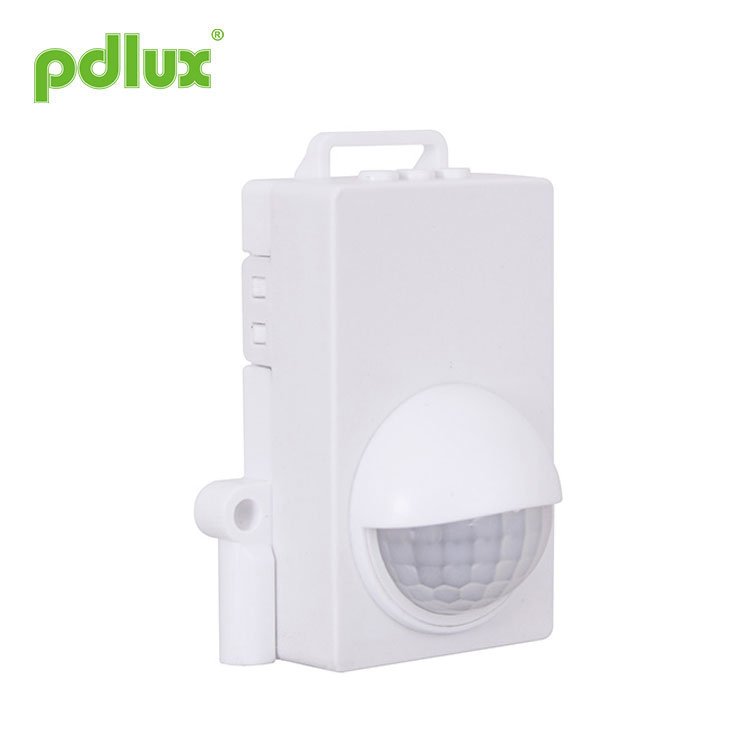

Mini shell (57mm*44.5mm*28mm)
Sense LED: when it detect sensing signal, the LED flash.

Specifications

Power source	220-240V/AC
Power frequency	50Hz
Rated load	50W Max.
Detection range	9m Max.
Time setting	Min:5±1sec  Max:8min±1min(adjustable)
Detection angle	120°
Light-control	<10~2000LUX (adjustable)
Working humidity	<93%RH
Working temperature	-25~+45℃
Power consumption	<0.5W
Installation height	0.7~2m

Sensor Information

Connection-Wire Diagram

Test

After installation, before switching on power turn the time anti-clockwise to min;
Switch on power, after 30sec the sensor enter stable working state;
After the load turn off, sense it, the load should turn on, and under the condition that no continual sensing signal, the load should turn off within 5sec;
When the light-control knob anti-clockwise set to the min, if you test the unit in the daytime, sense it, the load should not work. Cover the detection window with opaque object (simulate night light) and sense it, the load should turn on;

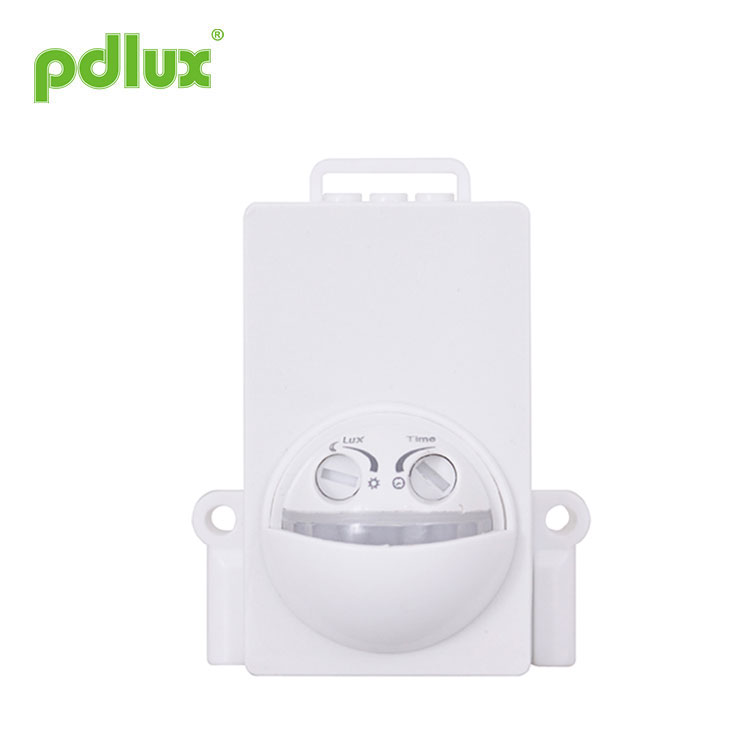

If all are normal, according to your require you can turn the time knob to set the lighting time and turn the light-control knob to select working light.

Note:please don’t adjust the two functional buttons to excess. That is because the two functional buttons were connected to the components directly, there is a small stopper in each of the two components, when you adjust the buttons from start to end, the excessive turn will damage the stopper，and lead to the 360°non-stop turn around.The adjust range limit is 270°, please do pay attention to this.

Notes
1.Electrician or experienced human can install it.
2.The unrest objects can’t be regarded the installation basis-face.
3.In front of the detection window there should be no hinder or unrest objects effecting detection.
4.Avoid installing it near air temperature alteration zones for example: air condition, central heating, etc.
5.Please don’t open the case for your safety if you find the hitch after installation.

Remark
1. Keep the sensor face to the area where human usually move.
2. Keep the sensor face to the position of the ambient light in order to get much more exact illuminance setting.
3. If detect the signal again within the time-delay, the time-delay will be over lied.

This manual is for the current content programming of this product, there are any changes and modifications to the manufacturer without notice!
It is strictly forbidden to copy the contents of the instruction manual for any other purpose without the permission of the company.
