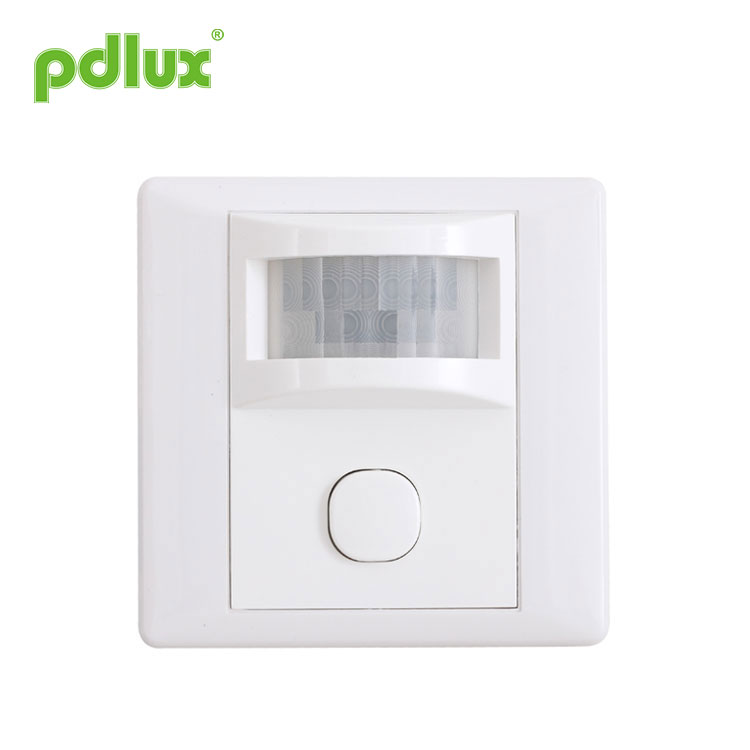

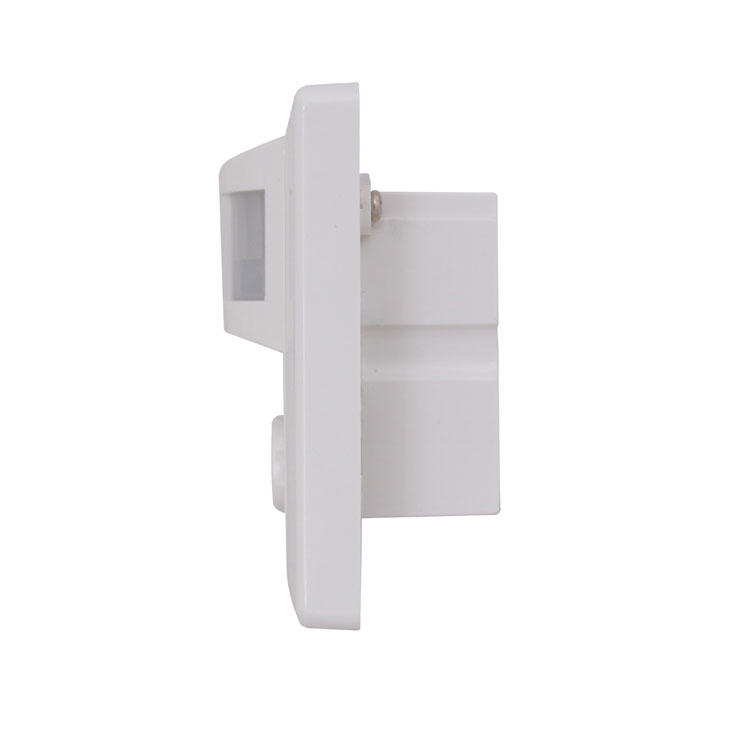

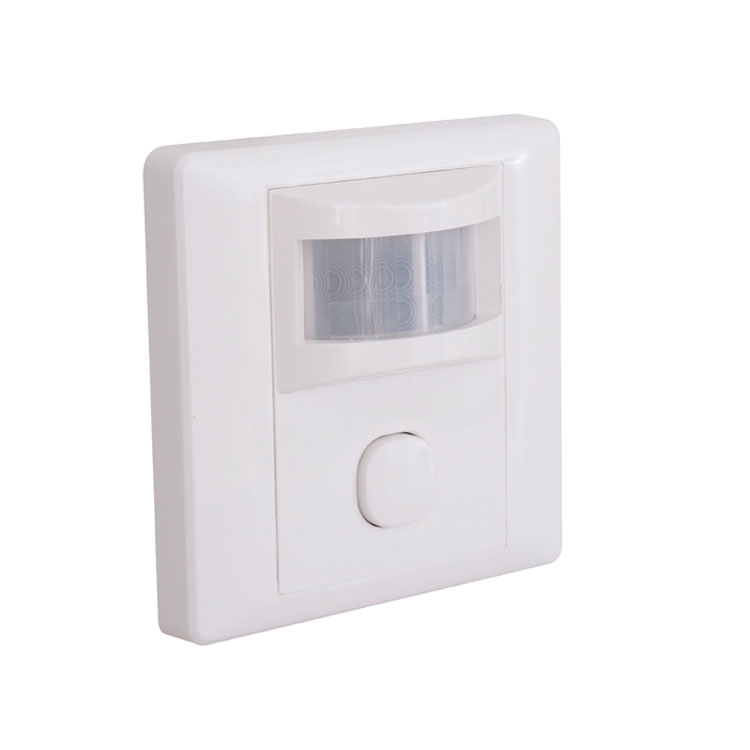

120 Degree Detection PIR Motion Sensor
You can rest assured to buy 120 Degree Detection PIR Motion Sensor from our factory and we will offer you the best after-sale service and timely delivery.
Model:PD-PIR134B / PD-PIR134C
Send Inquiry
Product Details
Infrared Sensor PD-PIR134B / PD-PIR134C instruction
Summary
The 120 Degree Detection PIR Motion Sensor is a new energy-saving switch ,it adopts integrated circuit and the good sensitivity detector (it adopted SMT). It gathers automatism, convenience, safety,energy-saving and practicality function. The wide detection range is made up of the up and down, left and right service field. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters the detection field. It can identify day and night automatically. Its using range is wide.It has the functions of the power indication and the detection indication.
Specifications
Sensor information
Function
Detection field: The detection field is made up of up and down, left and right service field. (See the following diagram ). But the moving orientation has great relationship with the sensitivity.
Can identify day and night: The light-control can be adjusted according to the consumer’s desire , when it is adjusted on the “moon” position (min), it can only work in the less than 10LUX light-control; It can work in the daytime and at night when it is adjusted on the “sun” position (max); As for the adjustment pattern, please refer to the testing pattern;
Time setting is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time setting basic.(set time)
Time setting is adjustable: It can be set according to the consumer’s desire.The minimum time is 8sec±3sec. The maximum is 7min±2min.
The switch: It is the “auto” condition when you push it in. It is “OFF” condition when you push it out.
PD-PIR134C uses two-wire input pattern, so its installation is more convenient to replace the original manual switch directly. Much trouble can be removed if you need replace the switch and install the new line.
Installation
Switch off the power.
Take off the sensor board-face and the nail.
Connect the power and the load wire with the sensor according to connection-wire diagram.
The sensor is fixed on the selected position.
You can switch on the power and test it after covering the board-face.
Test
Turn the control-light knob anti-clockwise on the maximum (“sun” position), turn the time knob anti-clockwise on the minimum.
Switch on the power, the controlled load work after 5~10sec, under the no inductor signals conditions, the load should stop working within 5~30sec.
After the first is out, make it sense again after 5~10sec. The load should work and it stops working within 5~15sec.
Turn the light-control knob clockwise on the minimum, the inductor load should not work after the load stop working in the more than 10LUX ambient-light, the load should work if you cover the detection window with the opaque object (towel etc).Under the no inductor signals conditions, it is normal for the load to stop working within 5~15sec.
Some problem and solved way
1. The load don’t work:
a. check the power and the load.
b. If the function switch is in the “auto” condition.
c. If the load is good.
d. Please check if the working light correspond to the light-control.
2. The sensitivity is poor:
a. Please check if the front of the detection window has the hinder that effect to receive the signals.
b. Please check the ambient temperature.
c. Please check if the signal source is in the detection field.
d. Please check the installation height.
e. If the moving orientation is correct.
3. The sensor can’t shut off the load automatically:
a. If there is continual sensor signal in the detection field.
b. If the time setting be set to the longest.
c. If the power correspond to the instruction.
d. If the temperature change near the sensor. (air condition, central heating etc.)
● Please confirm with prefessional installation.
● Please cut off power supply before installation and removal operations.
● Make sure that you have cut off the power for safety purposes.
● Improper operation caused losses, the manufacturer does not undertake any responsibility.
We are committed to promoting the product quality and reliability, however, all the electroniccomponents have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
Summary
The 120 Degree Detection PIR Motion Sensor is a new energy-saving switch ,it adopts integrated circuit and the good sensitivity detector (it adopted SMT). It gathers automatism, convenience, safety,energy-saving and practicality function. The wide detection range is made up of the up and down, left and right service field. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters the detection field. It can identify day and night automatically. Its using range is wide.It has the functions of the power indication and the detection indication.
Specifications
|
Power source: 100-130V/AC 220-240V/AC Power frequency: 50/60Hz Rated load: PD-PIR134B: 400W Max.tungsten(100-130V/AC) 100W Max.fluorescent(100-130V/AC) 600W Max.tungsten(220-240V/AC) 150W Max.fluorescent(220-240V/AC) PD-PIR134C: 100W Max.tungsten(100-130V/AC) 200W Max.tungsten(220-240V/AC) |
Light-control: <10LUX~2000LUX(adjustable) Time setting: min:8sec±3sec max:7min±2min (adjustable) Detection angle: 120° Detection angle: 9m Max. (<24°C) Working temperature: -10°C~+40°C Working humidity: <93%RH Installation height: 1m~1.6m Power consumption: 0.45W(static 0.1W) |
Sensor information
Function
Detection field: The detection field is made up of up and down, left and right service field. (See the following diagram ). But the moving orientation has great relationship with the sensitivity.
Can identify day and night: The light-control can be adjusted according to the consumer’s desire , when it is adjusted on the “moon” position (min), it can only work in the less than 10LUX light-control; It can work in the daytime and at night when it is adjusted on the “sun” position (max); As for the adjustment pattern, please refer to the testing pattern;
Time setting is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time setting basic.(set time)
Time setting is adjustable: It can be set according to the consumer’s desire.The minimum time is 8sec±3sec. The maximum is 7min±2min.
The switch: It is the “auto” condition when you push it in. It is “OFF” condition when you push it out.
PD-PIR134C uses two-wire input pattern, so its installation is more convenient to replace the original manual switch directly. Much trouble can be removed if you need replace the switch and install the new line.
Installation
Switch off the power.
Take off the sensor board-face and the nail.
Connect the power and the load wire with the sensor according to connection-wire diagram.
The sensor is fixed on the selected position.
You can switch on the power and test it after covering the board-face.
Test
Turn the control-light knob anti-clockwise on the maximum (“sun” position), turn the time knob anti-clockwise on the minimum.
Switch on the power, the controlled load work after 5~10sec, under the no inductor signals conditions, the load should stop working within 5~30sec.
After the first is out, make it sense again after 5~10sec. The load should work and it stops working within 5~15sec.
Turn the light-control knob clockwise on the minimum, the inductor load should not work after the load stop working in the more than 10LUX ambient-light, the load should work if you cover the detection window with the opaque object (towel etc).Under the no inductor signals conditions, it is normal for the load to stop working within 5~15sec.
|
Notes Electrician or experienced human can install it. The unrest objects can’t be regarded the installation basis-face. There aren’t hinder or unrest objects effecting detection in front of the detection window. Avoid installing it near temperature alteration zones,for example: air condition, central heating etc. Please don’t open the case for your safety if you find the hitch after installation. |
 |
Some problem and solved way
1. The load don’t work:
a. check the power and the load.
b. If the function switch is in the “auto” condition.
c. If the load is good.
d. Please check if the working light correspond to the light-control.
2. The sensitivity is poor:
a. Please check if the front of the detection window has the hinder that effect to receive the signals.
b. Please check the ambient temperature.
c. Please check if the signal source is in the detection field.
d. Please check the installation height.
e. If the moving orientation is correct.
3. The sensor can’t shut off the load automatically:
a. If there is continual sensor signal in the detection field.
b. If the time setting be set to the longest.
c. If the power correspond to the instruction.
d. If the temperature change near the sensor. (air condition, central heating etc.)
● Please confirm with prefessional installation.
● Please cut off power supply before installation and removal operations.
● Make sure that you have cut off the power for safety purposes.
● Improper operation caused losses, the manufacturer does not undertake any responsibility.
We are committed to promoting the product quality and reliability, however, all the electroniccomponents have certain probabilities to become ineffective, which will cause some troubles.When designing, we have paid attention to redundant designs and adopted safety quota to avoid any troubles.
This instruction, without our permission, should not be copied for any other purposes.
