5.8GHz Motion Sensor Module
5.8GHz Motion Sensor Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products.
Model:PD-V2
Send Inquiry
Product Details

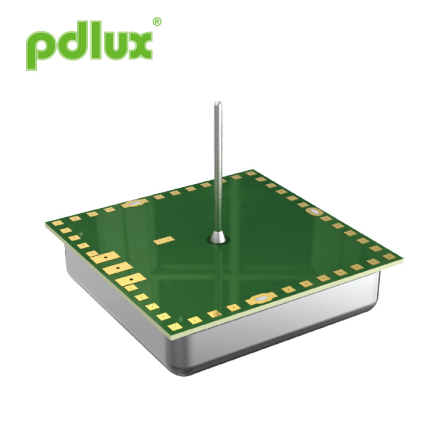

5.8GHz Motion Sensor Module
 |
Application of 5.8GHz Motion Sensor Module ● Intelligent switch ● Automatic light ● Intruder detect Feature and advantage ● Low wireless power output ● Low power consumption ● Non-contact detection ● Easy to match with the external circuit ● High anti-jamming ability ● Suit various harsh environment ● Low noise output 5.8GHz Motion Sensor Module is a C-Band Bi-Static Doppler transceiver modlue .It adopts built-in Resonator Oscillator (CRO) amplificated signal external circuit,It is convenient for the customers to develop various products. This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors. According with EN 300440-V2.1.1、EN 62479：2010,RED directive-2014/53/eu According with FCC Part 15.249 According with EN 62321,ROHS directive-2011/65/eu According with REACH directive-1907/2006/ec |
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 5.75 | 5.8 | 5.85 | GHz |
| Radiated Power (EIRP) | 1 | 0.2 | 0.225 | 0.25 | mW |
| Settling Time |
|
5 | 10 | 20 | μSec |
| Received Signal Strength | 2 | 150 | 200 | 300 | μVp-p |
| Noise | 3 | 0.5 |
|
2 | mVrms |
| Supply Voltage |
|
4.75 | 5 | 5.25 | VDC |
| Current Consumption |
|
18 | 20 | 25 | mA |
| Pulse Repetition Frequency | 4 | 2 | 2.2 | 3 | KHz |
| Pulse Width | 4 | 15 | 50 | 70 | μSec |
| Operating Temperature |
|
-10 | 22 | 90 | ℃ |
| Weight |
|
3.7 | 4 | 4.5 | g |
Note1: The radiated emissions is designed to meet FCC rules.
Note2:The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 54dB.
Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
Note4: Pulse operation
